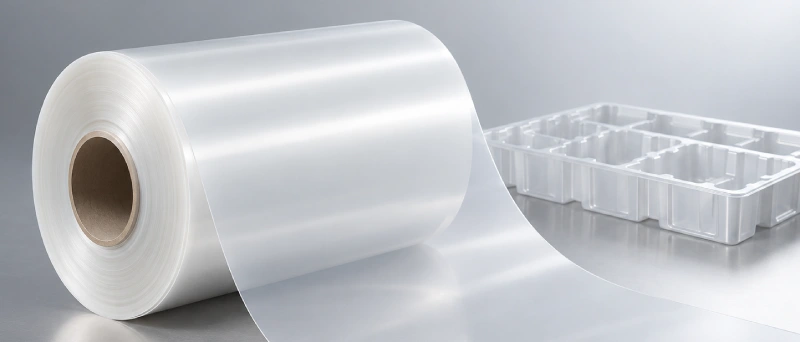

Conventional Anti-Static PP
For packaging applications requiring conventional static-control performance.
Surface resistance10¹⁰–10¹¹ Ω
Thickness0.30–2.00 mm
Width250–850 mm
ColorsMultiple options

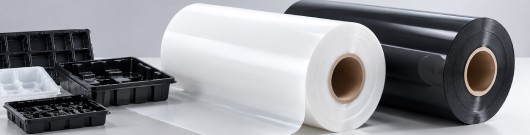

Anti-static PP sheet & roll
Anti-Static PPSheet & Roll for Thermoforming
Anti-static polypropylene rolls for electronics and industrial packaging. Choose the grade, sheet dimensions and electrical target that fit your process.
◇
Material selectionChoose against the actual electrical target
▤
Custom sheet dimensionsThickness, width, color and roll requirements
◎
Thermoforming focusDiscuss formed-part performance and trials
01 / Materials
Choose the right anti-static PP.
Resistance matters, but so do humidity, storage and how the sheet behaves after forming. Start with the conditions your packaging must meet.

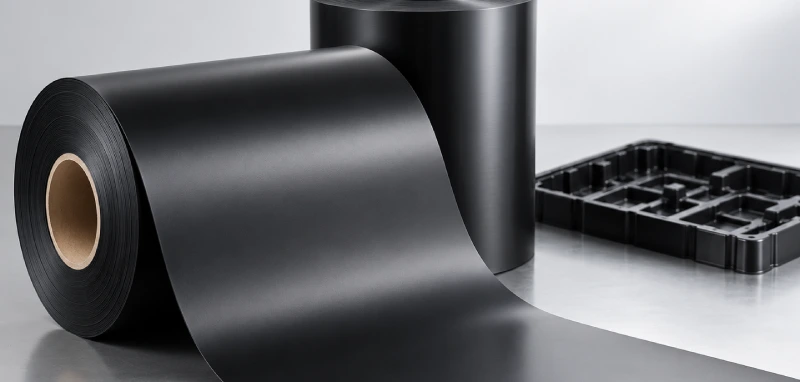

Permanent Anti-Static PP
A separate grade for applications requiring a more durable static-control approach.
Surface resistance10⁸–10⁹ Ω
Thickness0.70–1.70 mm
Width250–850 mm
ColorsMultiple options
Figures are from the respective PULIXIN TDS documents; surface resistance measured at 23°C ±3°C and 55% ±5% RH. Dimensions and colors are grade-specific and subject to order confirmation. “Permanent” is not a claim of unlimited electrical service life. Additive and conventional product labels require grade-level confirmation.
Not sure which grade fits your application?Discuss Your Requirements →
02 / Performance
What affects anti-static performance?
A value measured on flat sheet is a starting point. The environment and the thermoformed part tell the rest of the story.
ELECTRICAL PERFORMANCE · FROM SHEET TO FORMED PART
01
Incoming sheetDefined test conditions23°C ±3°C · 55% ±5% RH
02
ThermoformingHeat, draw and thickness distribution
03
Finished packagingConfirm electrical target where required
Humidity & environment
Conventional grades can respond to temperature and moisture conditions.
Storage & service time
Define how long and under what conditions static control is needed.
After thermoforming
Forming changes sheet geometry and local wall thickness. Check finished parts when required.
Electrical acceptance
Agree on test conditions, measurement locations and target values before supply.
What should buyers specify?
Share the required resistance, humidity conditions, use period, and whether acceptance applies to the sheet or the formed tray. The supplied TDS values describe a defined test environment—not every production condition.
Sheet data does not automatically certify the formed tray.
Where the final packaging must meet an electrical target, use a representative sample trial and agree on formed-part measurement locations. Neither unlimited life nor unchanged resistance after deep forming is claimed for these grades.
03 / Applications
Made for converters serving demanding industries.

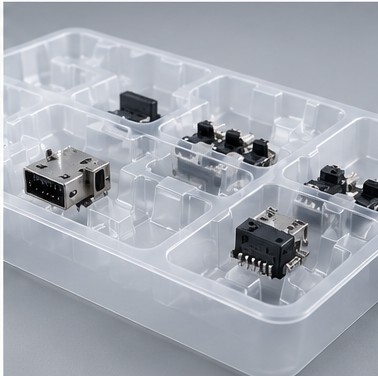

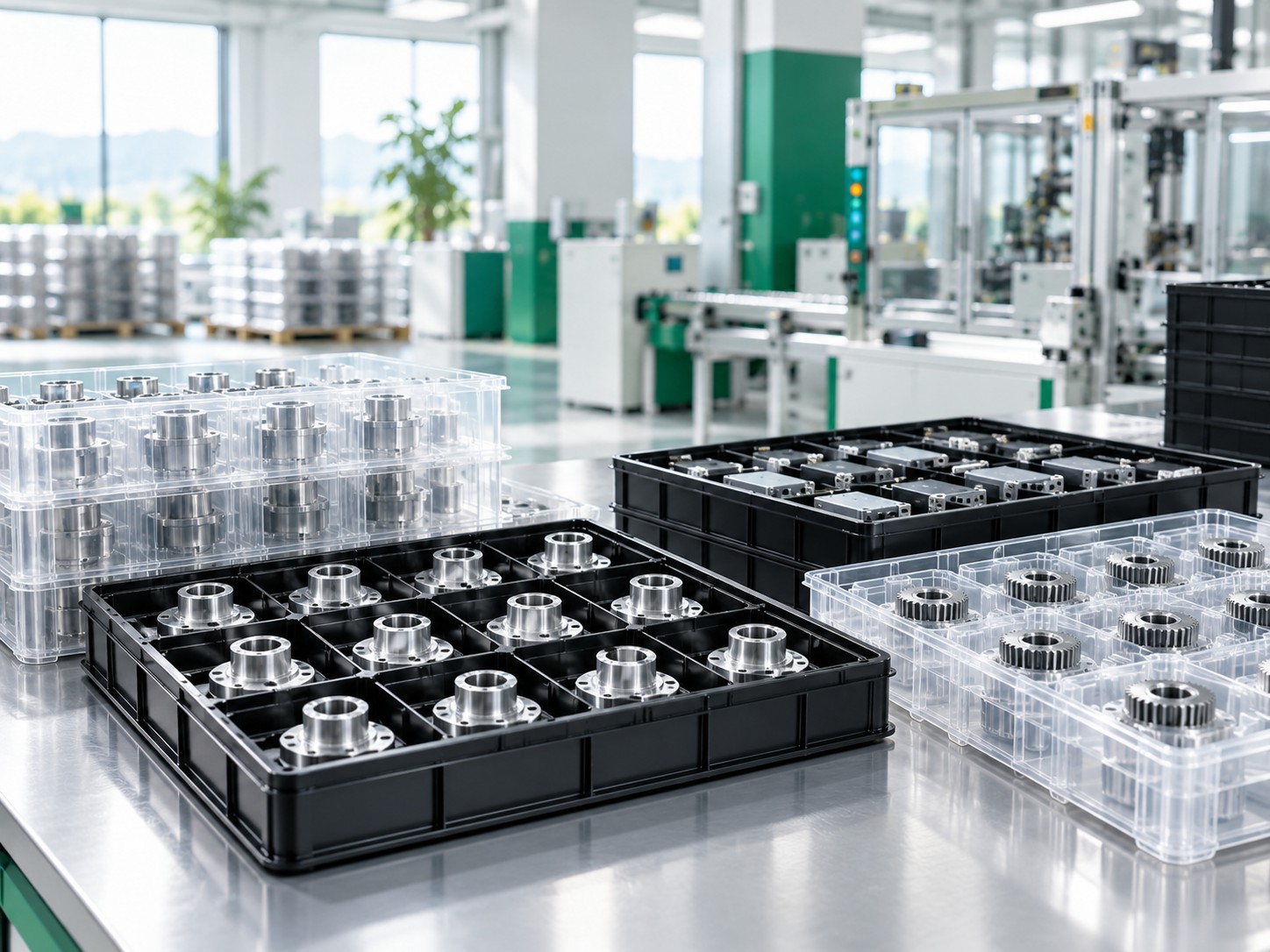

PULIXIN supplies the starting sheet and rolls for thermoformed packaging; finished trays shown here illustrate downstream applications, not finished goods supplied by PULIXIN.
04 / Sheet qualitySee supply requirements ↗
Consistent sheet. Better forming.
For a thermoforming converter, clean surfaces and dependable thickness matter alongside the anti-static grade. The starting sheet has to work on your line—not just on a data sheet.

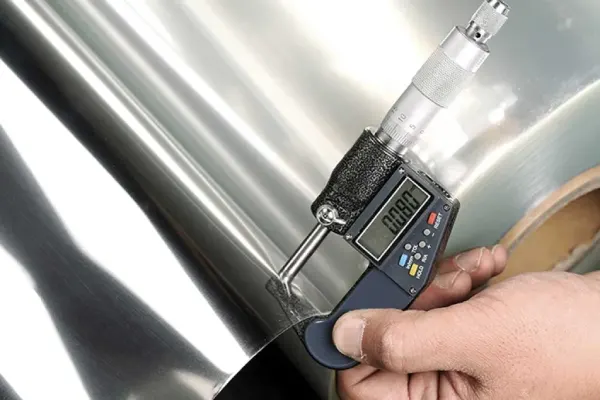

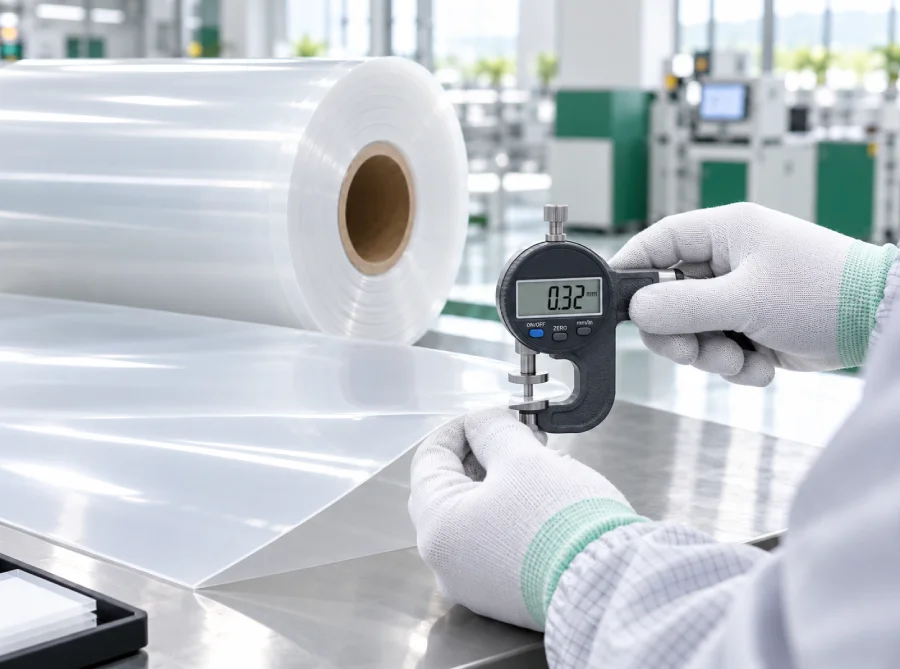

Thickness consistencyReview gauge against tray depth and rigidity.
Surface conditionSpecify clean, scratch-free material.
Sample formingEvaluate the selected grade on the intended line.
Formed-part checksVerify resistance where the application requires it.
05 / Custom supply

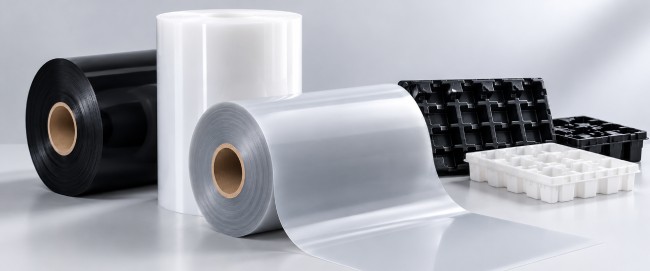

Your grade. Your dimensions. Your roll.
Tell us the resistance target, sheet dimensions and the type of tray you form. We can narrow down suitable grades and roll specifications.
TDS tolerances for these two grades: thickness ±0.02 mm; width ±2 mm. Confirm applicability for your order.

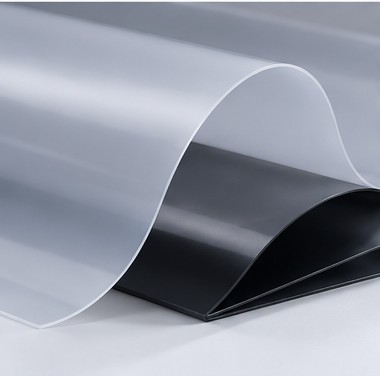

Material gradeConventional or permanent anti-static PP
Electrical targetSurface resistance, method, conditions and acceptance location
Thickness & widthGrade-specific dimensions and tolerances
Color & finishAppearance and surface requirements, subject to feasibility

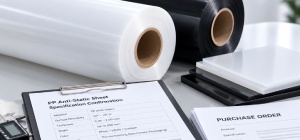

Roll formatCore, diameter, roll weight and winding details
ApplicationTray type, forming geometry, operating conditions
QualificationSample, formed-part checks and agreed inspection requirements
Order planningTrial/repeat quantity and destination
Send Your Specifications →06 / Working together
From your requirement to a qualified roll.
Five steps to align your application with the right incoming sheet specification. Select a step for details.
Choose a step to see what to prepare.

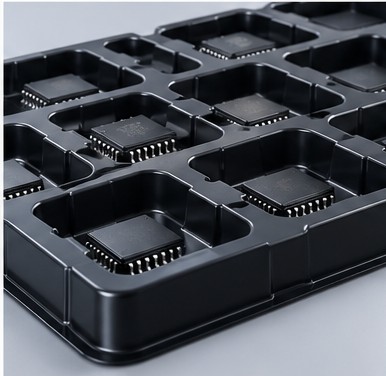

01 — Define your application
Describe what will be packed, how the thermoformed packaging is handled and which electrical conditions matter.
Need static-dissipative or conductive PP instead?
Anti-static PP is not interchangeable with every lower-resistance material. Explore our separate conductive PP specialty page for embedded and coated constructions.
Material & purchasing questions
They are distinct grades with different stated electrical properties and dimension ranges. PULIXIN's conventional TDS lists 10¹⁰–10¹¹ Ω, while the permanent grade lists 10⁸–10⁹ Ω under defined test conditions. Selection must also consider use environment, duration and forming requirements.
Conventional anti-static systems can be sensitive to temperature and humidity. The cited TDS resistance measurements were taken at 23°C ±3°C and 55% ±5% RH. Conditions outside that range should be discussed and tested for the intended application.
No. “Permanent” is the grade name, not proof of unlimited life or unchanged electrical performance under all environmental and processing conditions. Define durability requirements for the application.
When a finished tray must meet an electrical requirement, the converter should check representative formed areas using agreed test conditions. Incoming sheet measurements alone do not prove that every formed location meets the same target.
Conventional grade TDS: 0.30–2.00 mm thick and 250–850 mm wide. Permanent grade TDS: 0.70–1.70 mm thick and 250–850 mm wide. Both list multiple colors; any specific combination and roll requirement should be confirmed before ordering.
08 / Request a quote
Tell us your anti-static PP requirements.
Share your application, surface resistance target, thickness, width, color and expected volume. We can discuss appropriate sheet and roll options and sample requirements.
